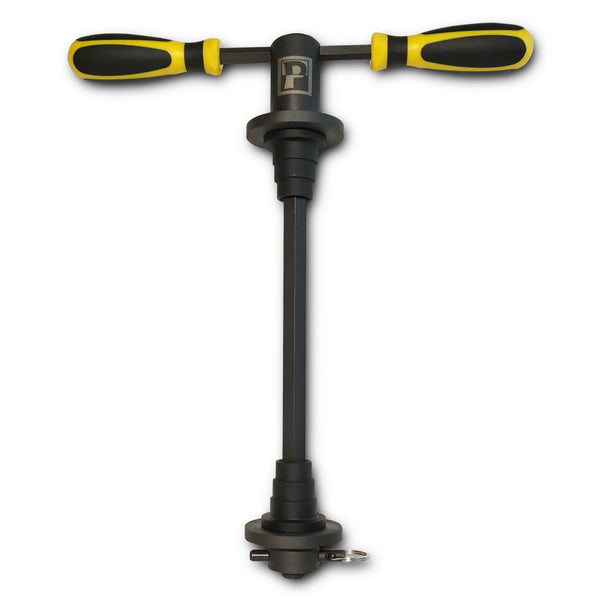

Headset and Bearing Press

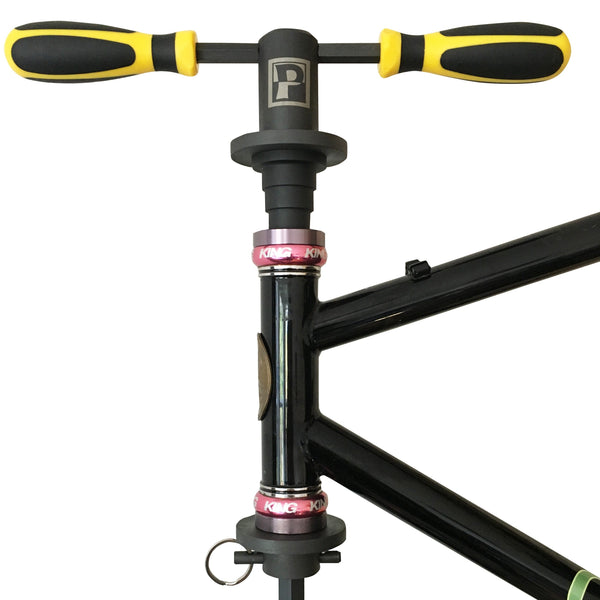

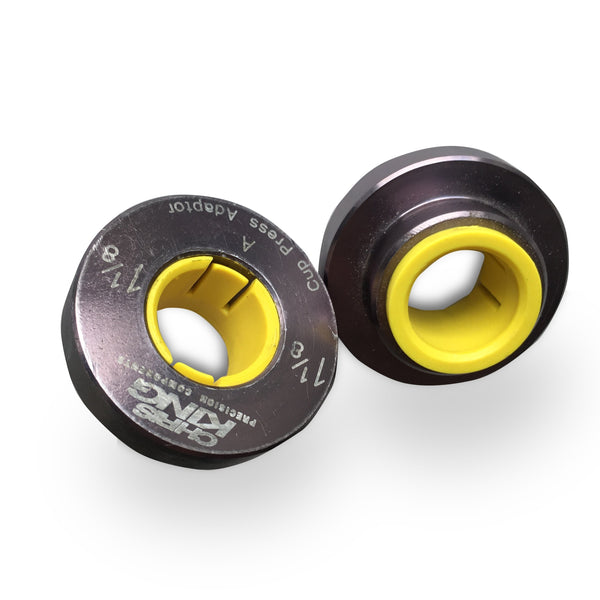

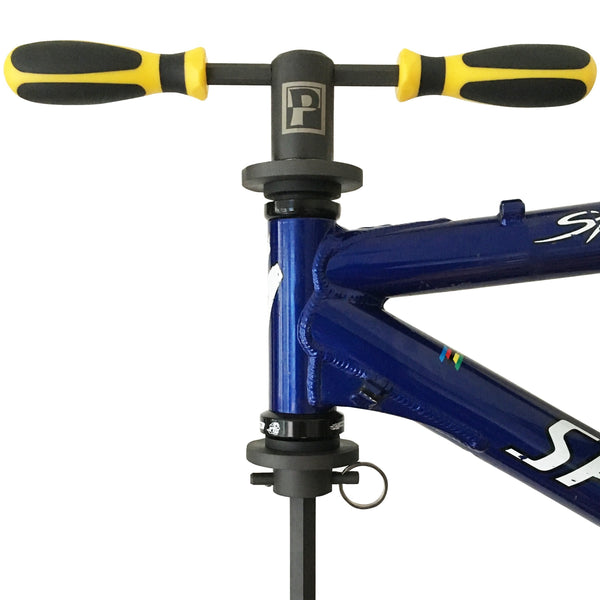

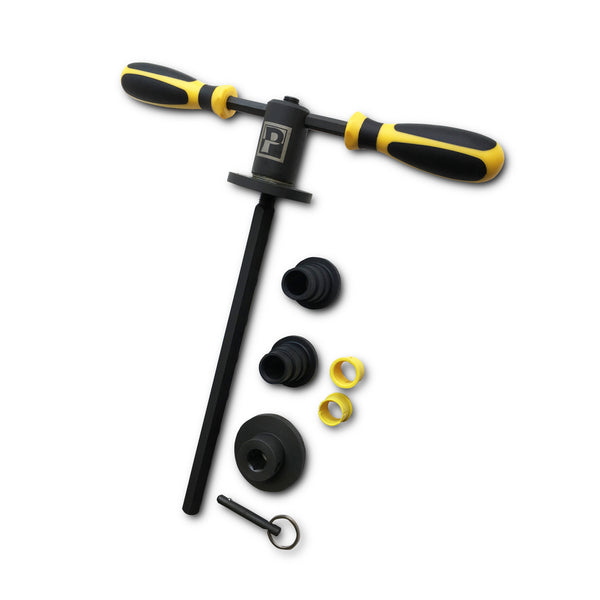

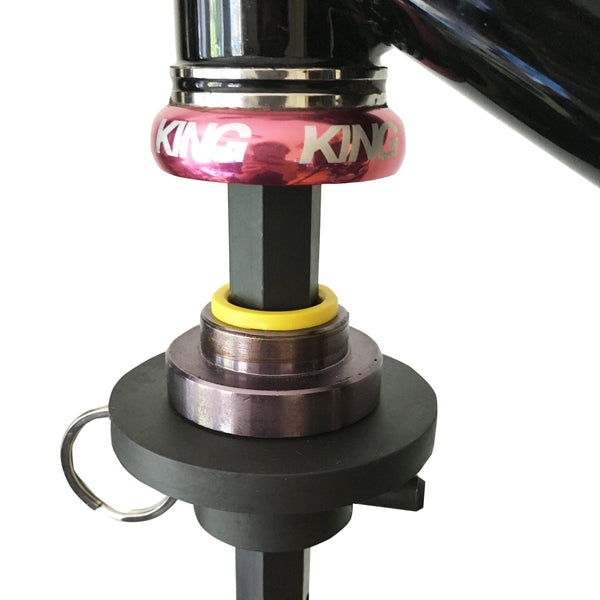

The Headset and Bearing Press is a professional quality tool designed to precisely and accurately install 1", 1⅛ ", 1¼", and 1.5" headsets as well as most press-fit bottom brackets. Features include removable, 33cm, ergonomic handles, a precision roller thrust bearing for smooth low-effort pressing, a quick release lower press module for fast tool positioning and removal, and an extensive working range from 60mm to 320mm for ultimate versatility. Two sets of adapters are included with the press. Two Stepped Cup Bushings are sized to fit most 1” and 1⅛ " standard headset cups and nest into press plates ensuring precise alignment. Two 22mm ID Shim Adapters ensure precision alignment of any brand-specific cup bushings designed with 22mm inside diameter. A complete set of compatible press fit bottom bracket bushings is available separately.
Headset and Bearing Press
The following provides a general overview of our bottom bracket tools. If you still are not sure, contact us and we’ll help you choose the right tool.
Bottom Bracket Wrench, Shimano 16-Notch X 44mm: Fits 16-notch, 44mm diameter external bearing bottom bracket cups including Shimano® Hollowtech II, Campagnolo® Ultra-Torque and Power Torque, Race Face®, FSA®, SRAM®, Truvativ®, Chris King®, and Phil Wood® outboard bearing. Also fits disc brake rotor lockrings with 16 external notches. NOTE: Will fit Shimano TL-FC24 and TL-FC25 adapters.
Bottom Bracket Wrench, Campagnolo 6-Notch: Fits Campagnolo® 6-notch SC-S and AC-H cartridge cups used on sealed cartridge bottom brackets for the following: Veloce®, Xenon®, Mirage®, Daytona®, and Avanti®.
Bottom Bracket Wrench – Shimano 6-Notch, fits the lockring used on Dura Ace® 7700 and XTR® 950 Bottom Brackets and many other lockrings.
Bottom Bracket Wrench – Shimano 8-Notch: Fits 8-Notch Shimano® Octalink and ISIS Drive® Bottom Bracket Cups.
External Bottom Bracket Socket: Fits 16-notch, 44mm diameter external bearing bottom bracket cups including Shimano® Hollowtech II, Campagnolo® Ultra-Torque and Power Torque, Race Face®, FSA®, SRAM®, Truvativ®, Chris King®, and Phil Wood® outboard bearing. NOTE: Will not fit Shimano TL-FC24 and TL-FC25 adapters.
Splined Bottom Bracket Socket: Fits all Shimano® and ISIS Drive® splined 20-tooth bottom bracket cups. Also fits many square taper bottom brackets.
Campy BB and Cassette Socket: Fits all Campagnolo® cassette lockrings and Record, Chorus, Centaur, and Athena bottom brackets.
Press Fit Bottom Bracket Tools:
Headset & Bearing Press: Compatible with all press-fit headsets and press fit bottom brackets*.
Bottom Bracket Bushing Set: Includes ten precision-machined bushings in 6 sizes covering installation of all road, mountain, and bmx press-fit bottom brackets cups and bearings, plus a BB Bushing Spacer for enhanced flexibility, speed, and alignment. Bushings and spacer designed for use with Pedro’s Headset & Bearing Press ensuring precise and accurate installation. Inner diameter of 18.4mm (14mm for 19-37 and 19-41) may fit onto other presses.
*Please refer to the Headset & Bearing Press User Guide for suggested press setup for different types of headsets and press fit bottom brackets.
Removal Tools: We do not currently offer tools for removal of press fit bottom brackets.
