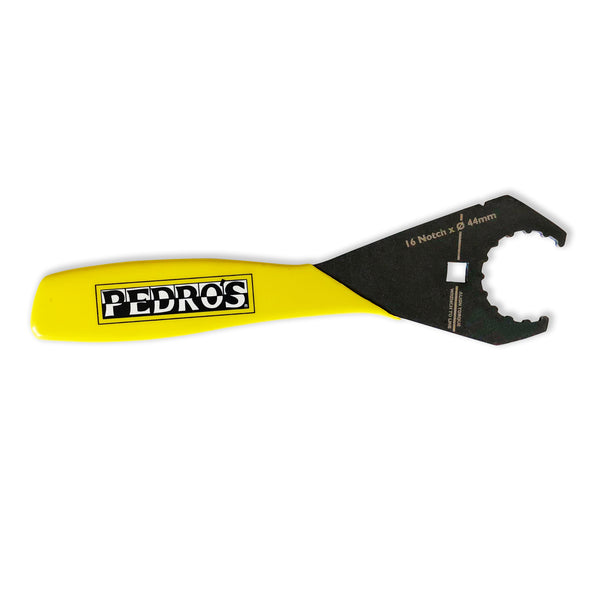

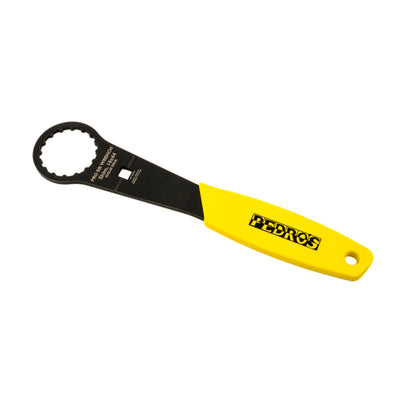

Bottom Bracket Wrench, Shimano® 16x44
Flat Wrench For 16-Notch X 44mm External Bearing BB Cups and Disc Brake Lockrings
- Fits 16-notch X 44mm diameter external bearing bottom bracket cups and disc brake rotor lockrings.
- Designed to stand up to the harsh conditions of professional use.
- Precision laser cut design with ergonomic cushioned grip.
Pedro's flat wrenches provide professional quality, precision fit wrenches required to properly install, remove, and adjust components. Pedro's bottom bracket flat wrenches are made from 4mm thick, precision laser cut, heat-treated tool steel for the ultimate in strength and lasting performance. Pedro's designed each flat wrench to fit perfectly protecting the component and ensuring simple and safe usage for the mechanic. Each wrench also features an ergonomic single-ended design with cushioned grip to provide maximum leverage & comfort. The Pedro's Bottom Bracket Wrench, Shimano® 16x44 fits 16-notch external bearing bottom bracket cups including Shimano® BB80, BB5700, XT® BB70, BB51, and previous external bearing threaded cups. Also fits many external Threaded types for Campagnolo®, Chris King®, FSA® MegaExo®, Hope™, SRAM®/Truvativ® GXP®, Race Face® X-type, Surly®, Wheels®, and others. Also fits disc brake rotor lockrings with 16 external notches and Shimano® TL-FC24 and TL-FC25 adapters. Backed by Pedro's lifetime warranty.
Bottom Bracket Wrench
The following provides a general overview of our bottom bracket tools. If you still are not sure, contact us and we’ll help you choose the right tool.
Bottom Bracket Wrench, Shimano 16-Notch X 44mm: Fits 16-notch, 44mm diameter external bearing bottom bracket cups including Shimano® Hollowtech II, Campagnolo® Ultra-Torque and Power Torque, Race Face®, FSA®, SRAM®, Truvativ®, Chris King®, and Phil Wood® outboard bearing. Also fits disc brake rotor lockrings with 16 external notches. NOTE: Will fit Shimano TL-FC24 and TL-FC25 adapters.
Bottom Bracket Wrench, Campagnolo 6-Notch: Fits Campagnolo® 6-notch SC-S and AC-H cartridge cups used on sealed cartridge bottom brackets for the following: Veloce®, Xenon®, Mirage®, Daytona®, and Avanti®.
Bottom Bracket Wrench – Shimano 6-Notch, fits the lockring used on Dura Ace® 7700 and XTR® 950 Bottom Brackets and many other lockrings.
Bottom Bracket Wrench – Shimano 8-Notch: Fits 8-Notch Shimano® Octalink and ISIS Drive® Bottom Bracket Cups.
External Bottom Bracket Socket: Fits 16-notch, 44mm diameter external bearing bottom bracket cups including Shimano® Hollowtech II, Campagnolo® Ultra-Torque and Power Torque, Race Face®, FSA®, SRAM®, Truvativ®, Chris King®, and Phil Wood® outboard bearing. NOTE: Will not fit Shimano TL-FC24 and TL-FC25 adapters.
Splined Bottom Bracket Socket: Fits all Shimano® and ISIS Drive® splined 20-tooth bottom bracket cups. Also fits many square taper bottom brackets.
Campy BB and Cassette Socket: Fits all Campagnolo® cassette lockrings and Record, Chorus, Centaur, and Athena bottom brackets.
Press Fit Bottom Bracket Tools:
Headset & Bearing Press: Compatible with all press-fit headsets and press fit bottom brackets*.
Bottom Bracket Bushing Set: Includes ten precision-machined bushings in 6 sizes covering installation of all road, mountain, and bmx press-fit bottom brackets cups and bearings, plus a BB Bushing Spacer for enhanced flexibility, speed, and alignment. Bushings and spacer designed for use with Pedro’s Headset & Bearing Press ensuring precise and accurate installation. Inner diameter of 18.4mm (14mm for 19-37 and 19-41) may fit onto other presses.
*Please refer to the Headset & Bearing Press User Guide for suggested press setup for different types of headsets and press fit bottom brackets.
Removal Tools: We do not currently offer tools for removal of press fit bottom brackets.
